ICAO CodeClassificationCategory

SB35

L1J

M

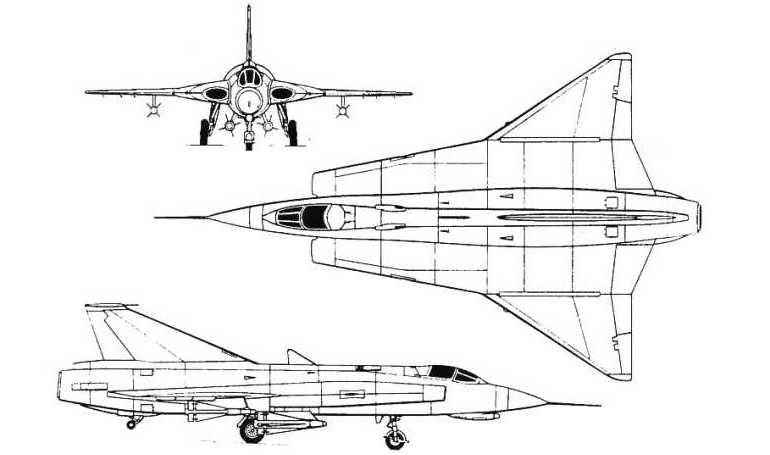

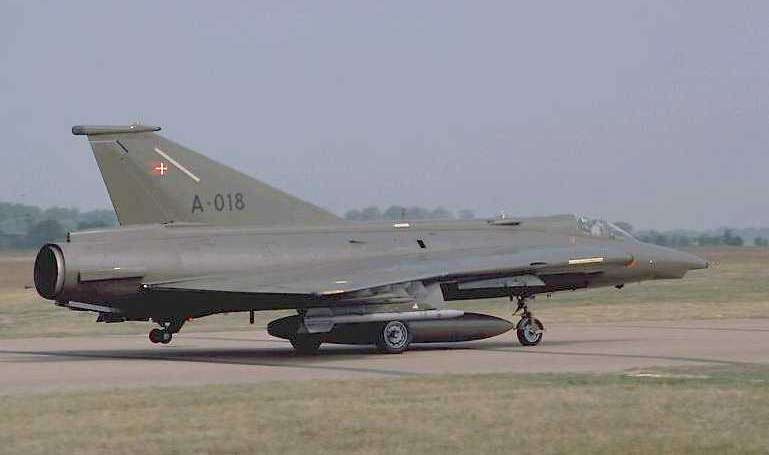

SB35thumb image
SB35thumb image
SB35thumb image

Manufacturers

SAAB
35 Draken
SAAB
F-35 Draken
SAAB
J35 Draken
SAAB
RF-35 Draken
SAAB
Sk35 Draken
SAAB
TF-35 Draken
VALMET
35 Draken

Technical Data

Wing Span
9.4
Length (m)
15.4
Height (m)
3.9
Take Off Distance (m)
1200
Landing Distance (m)
1500
Absolute Ceiling (x100ft)
630
Optimum Ceiling (x100ft)

Maximum Speed (kts/M)
828 / 1.68
Optimum Speed (kts/M)
421
Fuel Capacity (ltr)
4000
MTOW (t)
16
Maximum Range (NM)
1800
Persons On Board
Maximum Climb Rate (ft/min)
34450

Performance

Climb
LevelSpeedRate
000-160240-2501000-2000
160-180300-3301000-2000
180-300375-380800-1500
300-450300-310500-1000
Descent
LevelSpeedRate
000-1602502000
160-1803002000
180-3003751500
300-4503151000
