| ICAO Code | Classification | Category |
|---|---|---|
R90F |
L1P |
L/G |
Technical Data
Wing Span (m)
9.5
Length (m)
7.9
Height (m)
2.7
MTOW (t)
1.4
Fuel Capacity (ltr)
200
Maximum Range (Nm)
870
Persons On Board
4
Take Off Distance (m)
520
Landing Distance (m)
480
Absolute Ceiling (x100ft)
160
Optimum Ceiling (x100ft)
120
Maximum Speed (kts/M)
175
Optimum Speed (kts/M)
168
Maximum Climb Rate (ft/min)
1100
Manufacturers

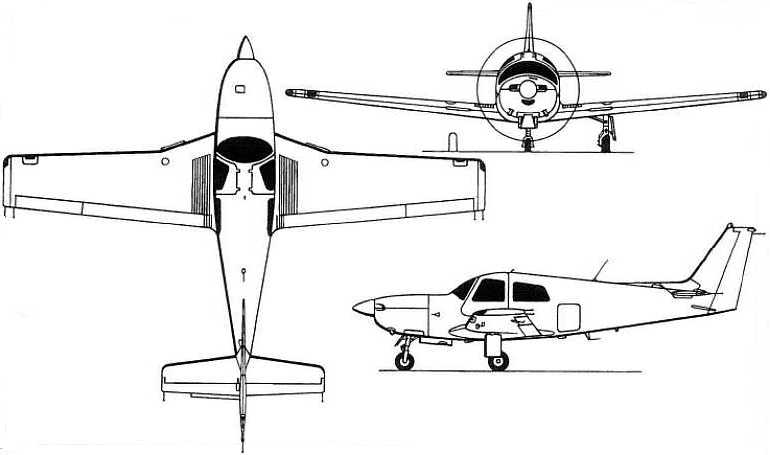

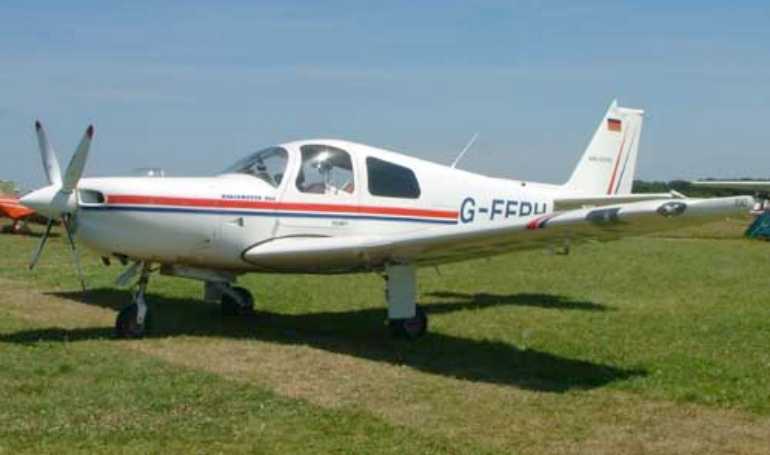

RUSCHMEYER R-90-230FG
