ICAO CodeClassificationCategory

CHGO

L1P

L

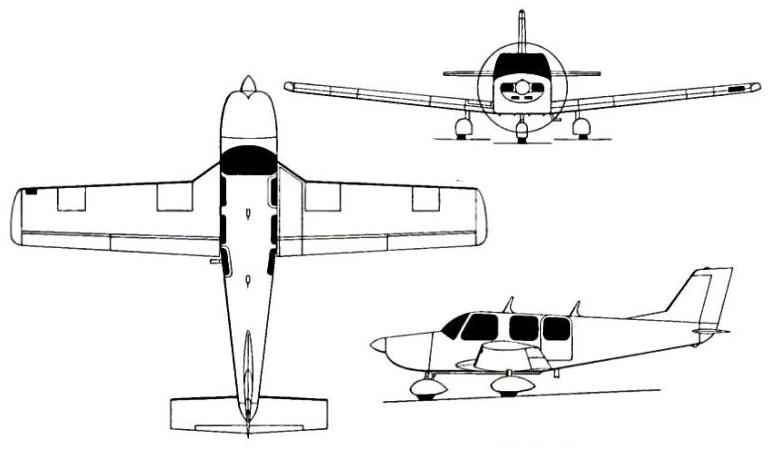

CHGOthumb image
CHGOthumb image
CHGOthumb image

Manufacturers

KOREAN AIR
CHK-91 Chang-Gong 91

Technical Data

Wing Span
10.2
Length (m)
7.7
Height (m)
2.7
Take Off Distance (m)
620
Landing Distance (m)
270
Absolute Ceiling (x100ft)
165
Optimum Ceiling (x100ft)
120
Maximum Speed (kts/M)
183
Optimum Speed (kts/M)
119
Fuel Capacity (ltr)
210
MTOW (t)
1.2
Maximum Range (NM)
600
Persons On Board
Maximum Climb Rate (ft/min)
740

Performance

Climb
LevelSpeedRate
000-100180-2151000-2000
100-200170-180500-800
200-300170-180500-800
Descent
LevelSpeedRate
000-1001801000
100-2001801000
200-3001801000
