ICAO CodeClassificationCategory

BER2

A2J

M

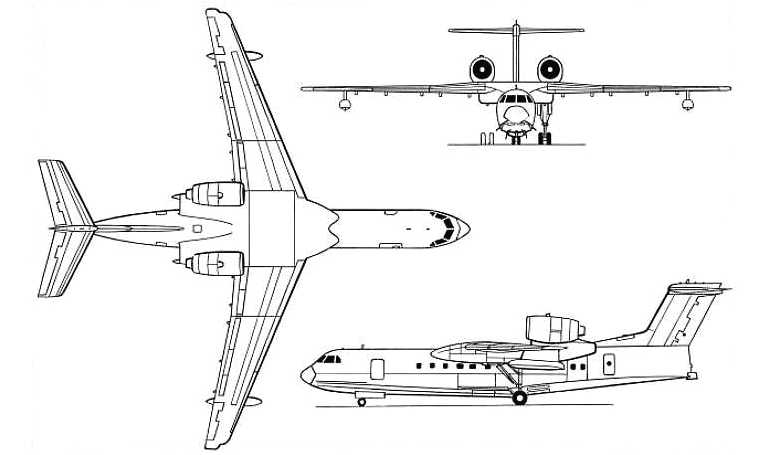

BER2thumb image
BER2thumb image
BER2thumb image

Manufacturers

BERIEV
Be-200 Altair

Technical Data

Wing Span
32.7
Length (m)
31.4
Height (m)
8.9
Take Off Distance (m)
700
Landing Distance (m)
1000
Absolute Ceiling (x100ft)
360
Optimum Ceiling (x100ft)
330
Maximum Speed (kts/M)
388 / .69
Optimum Speed (kts/M)
329
Fuel Capacity (ltr)
12000
MTOW (t)
42
Maximum Range (NM)
2000
Persons On Board
10-72
Maximum Climb Rate (ft/min)
2750

Performance

Climb
LevelSpeedRate
000-100240-2501000-1500
100-200270-3001000-1430
200-300300-330770-1000
300-400350-360670-1000
400-500350-360670-1000
Descent
LevelSpeedRate
000-1002601430
100-2003601500
200-3004201670
300-4003601250
400-5003601250
