ICAO CodeClassificationCategory

BELF

L4T

M

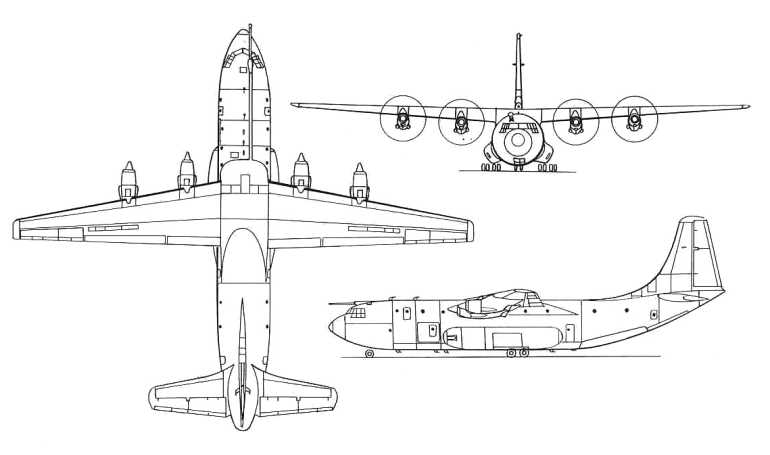

BELFthumb image

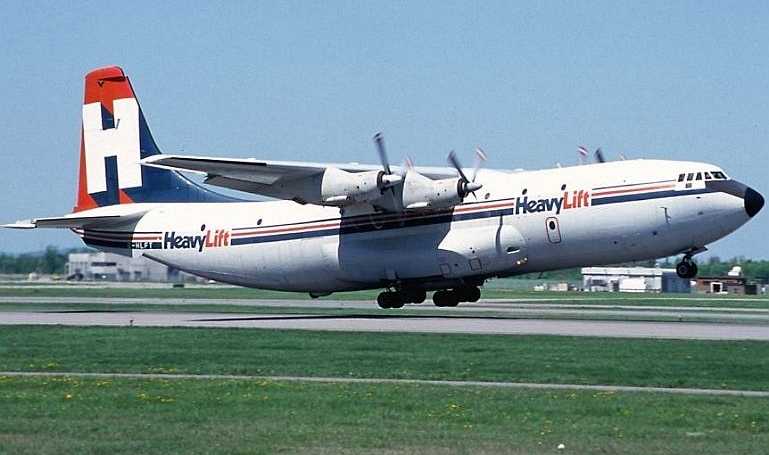

BELFthumb image
BELFthumb image

Manufacturers

SHORT
SC-5 Belfast

Technical Data

Wing Span
48.4
Length (m)
42.6
Height (m)
14.3
Take Off Distance (m)

Landing Distance (m)

Absolute Ceiling (x100ft)
300
Optimum Ceiling (x100ft)
250
Maximum Speed (kts/M)
306
Optimum Speed (kts/M)
275
Fuel Capacity (ltr)
45870
MTOW (t)
104.3
Maximum Range (NM)
4600
Persons On Board
255
Maximum Climb Rate (ft/min)


Performance

Climb
LevelSpeedRate
000-100200-2051000-1500
100-200180-190830-1000
200-300230-240330-500
300-400240-250330-500
Descent
LevelSpeedRate
000-1002701500
100-2002401430
200-3002401000
300-4002401000
