ICAO CodeClassificationCategory

A5

A1P

L

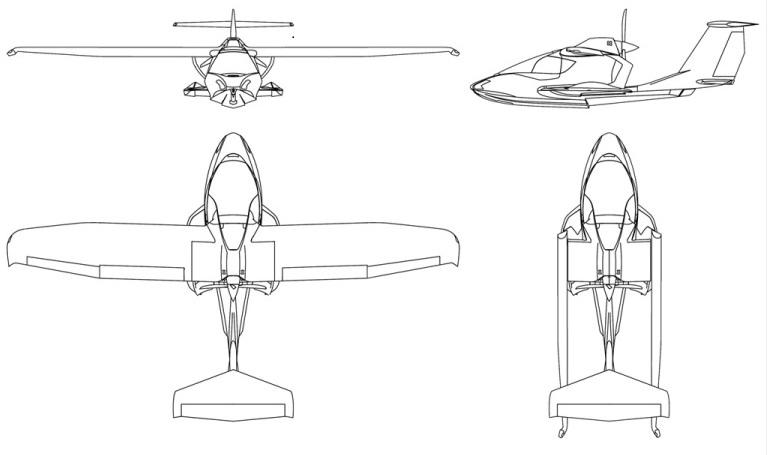

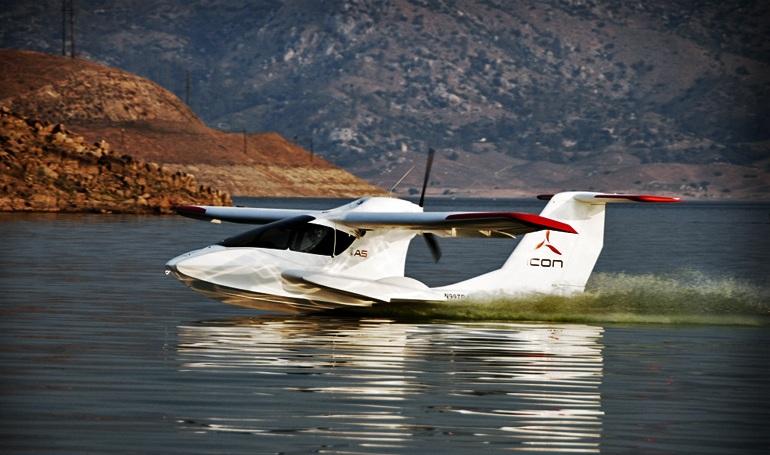

A5thumb image
A5thumb image
A5thumb image

Manufacturers

ICON
A-5

Technical Data

Wing Span
10.3
Length (m)
6.7
Height (m)
2.2
Take Off Distance (m)
220
Landing Distance (m)
220
Absolute Ceiling (x100ft)

Optimum Ceiling (x100ft)

Maximum Speed (kts/M)
105
Optimum Speed (kts/M)

Fuel Capacity (ltr)
76
MTOW (t)
0.5
Maximum Range (NM)
300
Persons On Board
Maximum Climb Rate (ft/min)


Performance

Climb
LevelSpeedRate
000-100180-2151000-2000
100-200170-180500-800
200-300170-180500-800
Descent
LevelSpeedRate
000-1001801000
100-2001801000
200-3001801000
