ICAO CodeClassificationCategory

A35

L1P

L

A35thumb image
A35thumb image
A35thumb image

Manufacturers

AVANTAGE

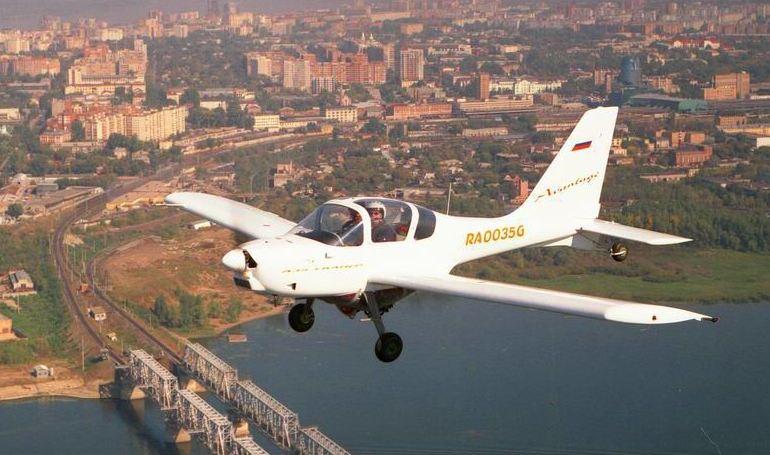

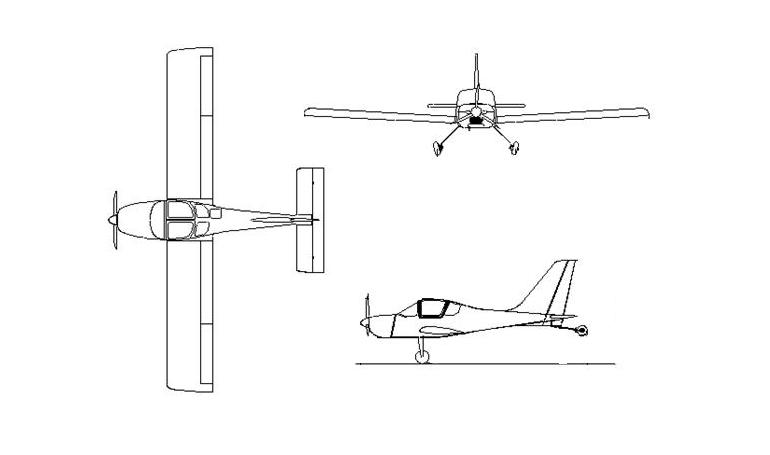

A-35 Scanner

Technical Data

Wing Span
10.2
Length (m)
6.7
Height (m)
Take Off Distance (m)
80
Landing Distance (m)
90
Absolute Ceiling (x100ft)
120
Optimum Ceiling (x100ft)
100
Maximum Speed (kts/M)
100
Optimum Speed (kts/M)
80
Fuel Capacity (ltr)

MTOW (t)
0.8
Maximum Range (NM)
480
Persons On Board
Maximum Climb Rate (ft/min)
1200

Performance

Climb
LevelSpeedRate
000-100180-2151000-2000
100-200170-180500-800
200-300170-180500-800
Descent
LevelSpeedRate
000-1001801000
100-2001801000
200-3001801000
