ICAO CodeClassificationCategory

A223

L1P

L

A223thumb image
A223thumb image
A223thumb image

Manufacturers

OSKBES-MAI

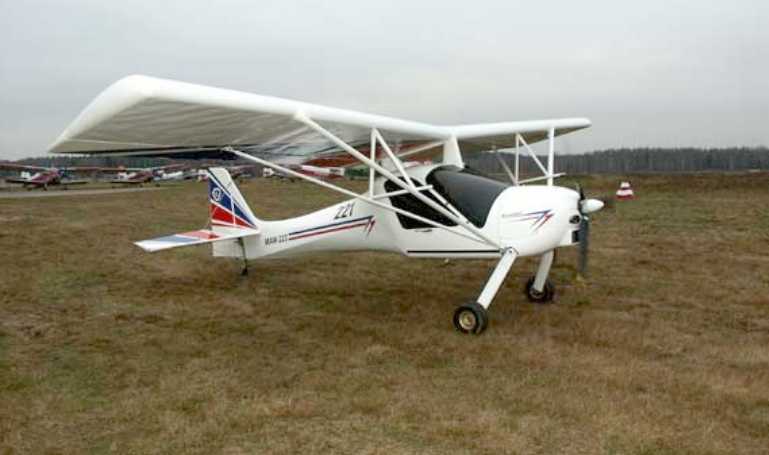

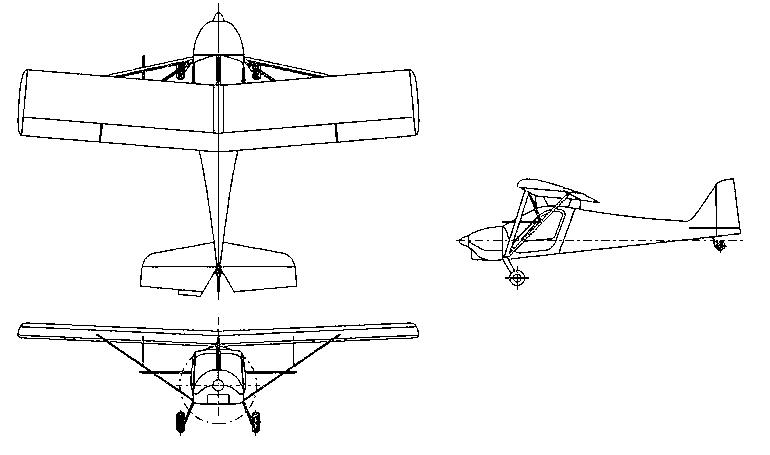

MAI-223 Kityonok

Technical Data

Wing Span
8.2
Length (m)
Height (m)

Take Off Distance (m)
150
Landing Distance (m)
100
Absolute Ceiling (x100ft)
230
Optimum Ceiling (x100ft)
210
Maximum Speed (kts/M)
110
Optimum Speed (kts/M)
100
Fuel Capacity (ltr)
70
MTOW (t)
0.6
Maximum Range (NM)
400
Persons On Board
Maximum Climb Rate (ft/min)
1100

Performance

Climb
LevelSpeedRate
000-100180-2151000-2000
100-200170-180500-800
200-300170-180500-800
Descent
LevelSpeedRate
000-1001801000
100-2001801000
200-3001801000
