ICAO CodeClassificationCategory

A211

L1P

L

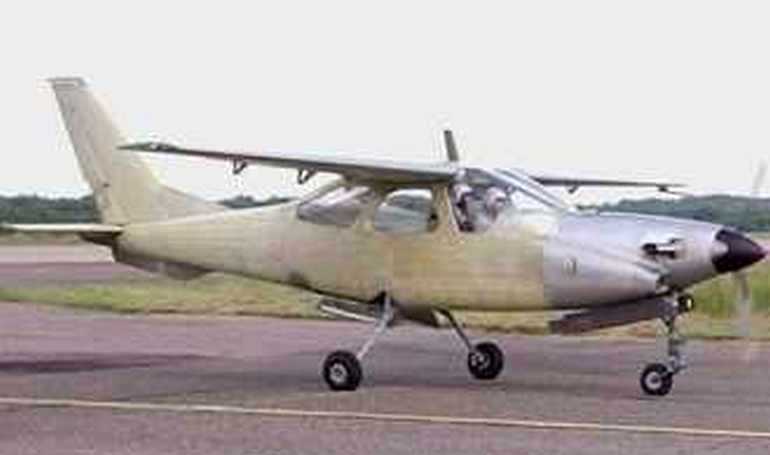

A211thumb image
A211thumb image
A211thumb image

Manufacturers

ALFA-M
A-211

Technical Data

Wing Span
10
Length (m)
6.8
Height (m)
2.8
Take Off Distance (m)
150
Landing Distance (m)
150
Absolute Ceiling (x100ft)
100
Optimum Ceiling (x100ft)
80
Maximum Speed (kts/M)
113
Optimum Speed (kts/M)
75
Fuel Capacity (ltr)
114
MTOW (t)
0.7
Maximum Range (NM)
400
Persons On Board
Maximum Climb Rate (ft/min)
1000

Performance

Climb
LevelSpeedRate
000-100180-2151000-2000
100-200170-180500-800
200-300170-180500-800
Descent
LevelSpeedRate
000-1001801000
100-2001801000
200-3001801000
