ICAO CodeClassificationCategory

A124

L4J

H

A124thumb image
A124thumb image
A124thumb image

Manufacturers

ANTONOV

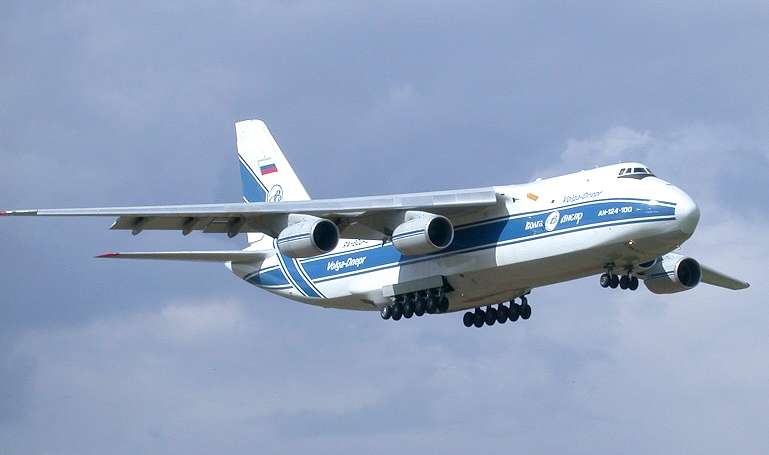

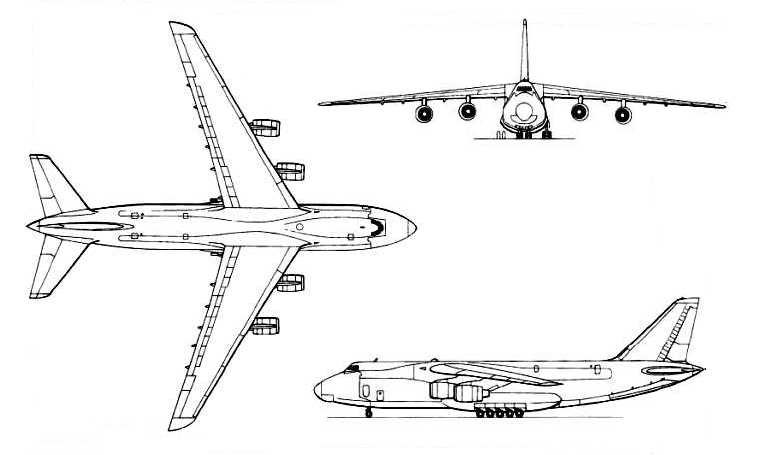

An-124 Ruslan

Technical Data

Wing Span
73.3
Length (m)
69.1
Height (m)
21
Take Off Distance (m)
3000
Landing Distance (m)
900
Absolute Ceiling (x100ft)
400
Optimum Ceiling (x100ft)
330
Maximum Speed (kts/M)
465
Optimum Speed (kts/M)
450 / .68
Fuel Capacity (ltr)
348700
MTOW (t)
405
Maximum Range (NM)
8900
Persons On Board
88
Maximum Climb Rate (ft/min)
1300

Performance

Climb
LevelSpeedRate
000-100215-2351000-1500
100-200430-4801430-2000
200-300360-3751000-1250
300-400330-360670-910
400-500330-360670-910
Descent
LevelSpeedRate
000-1002601430
100-2004501670
200-3004301430
300-4003751250
400-5003751250
