ICAO CodeClassificationCategory

A109

H2T

L

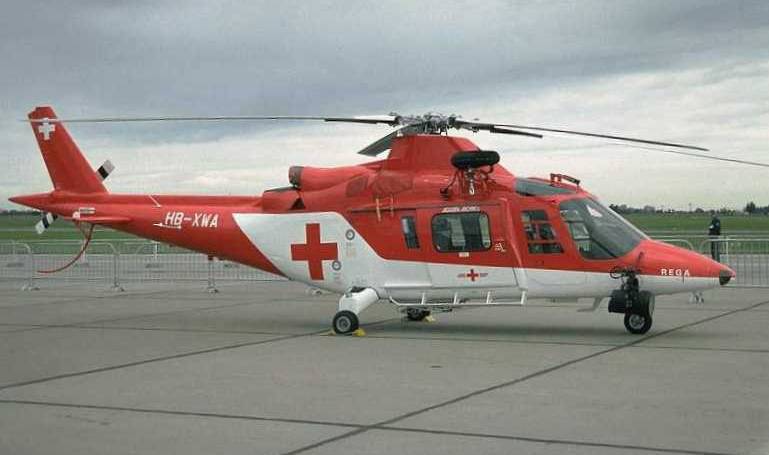

A109thumb image
A109thumb image
A109thumb image

Manufacturers

AGUSTA
A-109
AGUSTA
A-109 Grand
AGUSTA
A-109 Nexus
AGUSTA
A-109 Power
AGUSTA
AW-109
AGUSTA
AW-109 Da Vinci
AGUSTA
AW-109 Grand
AGUSTA
AW-109 GrandNew
AGUSTA
AW-109 Nexus
AGUSTA
AW-109 Power
AGUSTA
Hkp15
AGUSTA
MH-68 Stingray
AGUSTAWESTLAND
AW-109 GrandNew
AGUSTAWESTLAND
AW-109 Power
DENEL
A-109
SABCA
A-109

Technical Data

Wing Span
Length (m)
10.7
Height (m)
3.3
Take Off Distance (m)
Landing Distance (m)
Absolute Ceiling (x100ft)
200
Optimum Ceiling (x100ft)
120
Maximum Speed (kts/M)
156
Optimum Speed (kts/M)
126
Fuel Capacity (ltr)
750
MTOW (t)
2.8
Maximum Range (NM)
360
Persons On Board
Maximum Climb Rate (ft/min)
2100

Performance

Climb
LevelSpeedRate
000-04085-90560-840
040-08085-95520-770
080-20090-120270-290
Descent
LevelSpeedRate
000-04060800
040-08060800
080-2001201200
