ICAO CodeClassificationCategory

A10

L2J

M

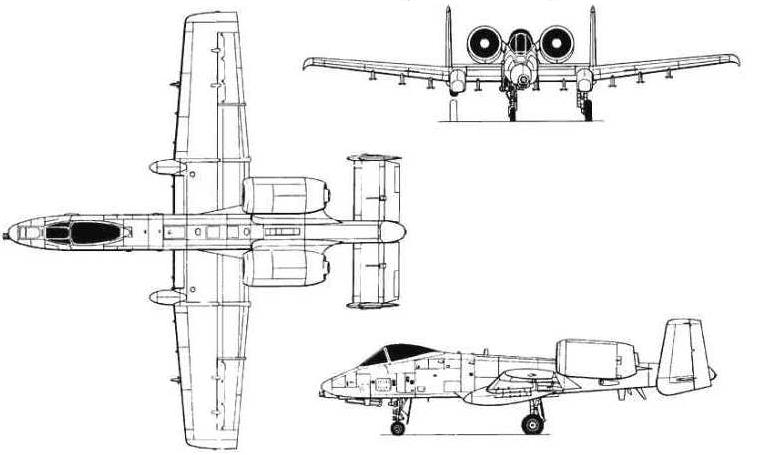

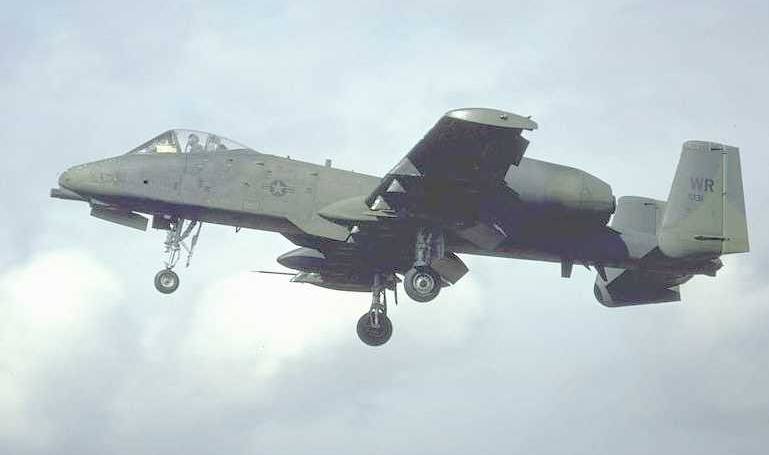

A10thumb image
A10thumb image
A10thumb image

Manufacturers

FAIRCHILD (1)
A-10 Thunderbolt 2
FAIRCHILD (1)
OA-10 Thunderbolt 2

Technical Data

Wing Span
17.5
Length (m)
16.3
Height (m)
4.5
Take Off Distance (m)
1200
Landing Distance (m)
610
Absolute Ceiling (x100ft)
450
Optimum Ceiling (x100ft)
410
Maximum Speed (kts/M)
423
Optimum Speed (kts/M)
310
Fuel Capacity (ltr)
4850
MTOW (t)
23.1
Maximum Range (NM)
2300
Persons On Board
Maximum Climb Rate (ft/min)
6000

Performance

Climb
LevelSpeedRate
000-100240-2501000-1500
100-200270-3001000-1430
200-300300-330770-1000
300-400350-360670-1000
400-500350-360670-1000
Descent
LevelSpeedRate
000-1002601430
100-2003601500
200-3004201670
300-4003601250
400-5003601250
